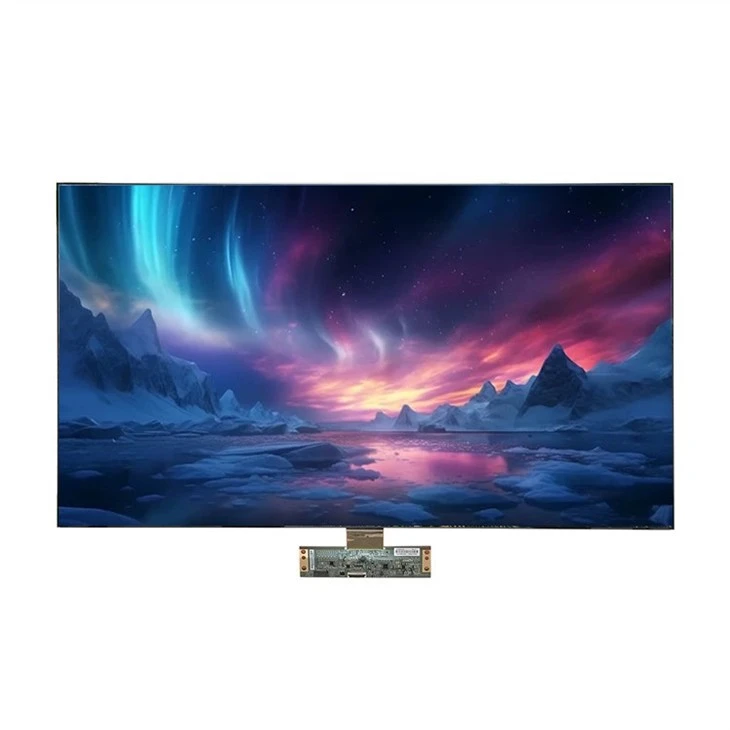

M236HVR01.0 CELL is a 23.6″ diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), without backlight, without touch screen. It features an operating temperature range of 0~50°C, a storage temperature range of 0~65°C. It's general features are summarized by MagicSCM in the following: Curved Display, 165Hz, Matte, 1500R. Based on its features, MagicSCM recommend that this model be applied to Desktop Monitor, Gaming etc.Built-in 6 source chips driver IC. According to the information stored in MagicSCM this model mass production on Q1, 2020, Now this model is in production. There are 7 items stock and 3 suppliers of this model on MagicSCM. We inputted this model's specification on Mar 11 2021 for the first time, and the latest update on Aug 5 2021. If you want to embed the CELL in your future product, MagicSCM strongly recommend that you should contact with AUO or it's agent to learn lateast production and specification detail of M236HVR01.0 CELL. The production status marked on MagicSCM.com is for reference only and should not be used as the basis for the user's decision making. All specification details are inputted by MagicSCM engineers according to datasheet, but mistakes maybe made during inputting.
|
Manufacturer |
AUO |
Model Name |
M236HVR01.1 CELL |
|
Screen Size |
23.6 inch |
Screen Type |
CELL, a-Si TFT-LCD |
|
Pixel Number |
1920 (RGB) x 1080 (FHD) 93 PPI |
Arrangement |
RGB Vertical Stripe |
|
Active Area (mm) |
521.395 x 293.285 (HxV) |
Outline(mm) |
531.9 X 304.9 x 1.11 (HxVxD) |
|
Bezel Area (mm) |
Treatment |
Antiglare (Haze 40%), Hard coating (3H) |
|
|
Luminance |
0 cd/m2 |
Contrast Ratio |
3000: 1 (Typ.) (TM) |
|
Viewing Angle |
89/89/89/89 (Typ.) (CR210) |
Response |
20 (Typ.) (G to G) ms |
|
Good View at |
Symmetry |
Work Mode |
VA, Normally Black, Transmissive |
|
Glass Thickness |
0.40+0.40mm |
Transmissivity |
3.4% (Typ.) (with Polarizer) |
|
Color Depth |
16.7M 69% NTSC |
Backlight |
No B/L |
|
Mass |
530g (Typ.) |
Used for |
|
|
Refresh Rate |
60Hz |
Touchscreen |
Without |
|
Driver IC list |
Built-in COF 6 source chips |
||
|
Signal Type |
LVDS (2 ch, 8-bit), 30 pins Connector |
||
|
Voltage Supply |
12.0V (Typ.) |
||
|
Max. Ratings |
Storage Temp.: 0~ 65℃ Operating Temp.: 0~50℃ |
||
AU Optronics Corp. (hereafter called AUO) M236HVR01.1 CELL (Alias: 91.23M08.100) is a 23.6 inch diagonal a-Si TFT-LCD display screen product, without backlight, without touch screen. Based on datasheet with version of Ver0.2 which was released out on 7 1 2019, M236HVR01.1 CELL supports display 1920 (RGB) × 1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 521.395 (W) × 293.285 (H) mm, outline size of 531.9 (W) × 304.9 (H) × 1.11 (D) mm, with surface treament of Antiglare (Haze 40%), Hard coating (3H), net weight of 530g (Typ.), utilizing 0.40+0.40 mm mm plate. As a VA, Normally Black, Transmissive CELL product, M236HVR01.1 CELL can provides 3000:1 transimissive contrast ratio, 89/89/89/89 (Typ.) (CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry, and response time of 20 (Typ.) (G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 69% (NTSC). This product have no backlight. M236HVR01.1 CELL utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of M236HVR01.1 CELL We strongly recommend that you should refer to datasheet listed on MagicSCM.com or contact with AUO or it's distributor.

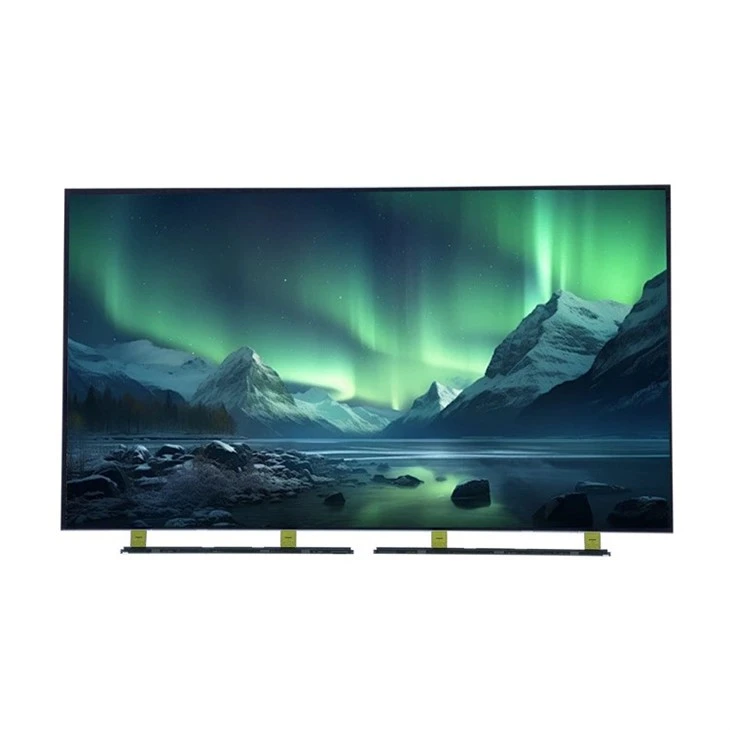

The M236HVR01.3 CELL is a 23.6 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), without backlight, without touch screen. It features an operating temperature range of 0~50°C, a storage temperature range of -20~60°C. It's general features are summarized by MagicSCM in the following: Curved Display, 120Hz, Matte, R1500, L Angle. Based on its features, MagicSCM recommend that this model be applied to Desktop Monitor, Gaming etc. Built-in 6 source chips driver IC. According to the information stored in MagicSCM this model mass production on Q4, 2019 and last shippment on Q4, 2021, Now this model is discontinued. There are 0 items stock and 1 suppliers of this model on MagicSCM. We inputted this model's specification on Mar 11 2021 for the first time, and the latest update on Feb 24 2022. If you want to embed M236HVR01.3 CELL CELL in your future product, MagicSCM strongly recommend that you should contact with AUO or it's agent to learn lateast production and specification detail. The M236HVR01.3 CELL production status marked on MagicSCM.com is for reference only and should not be used as the basis for the user's decision making. All specification details are inputted by MagicSCM engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.

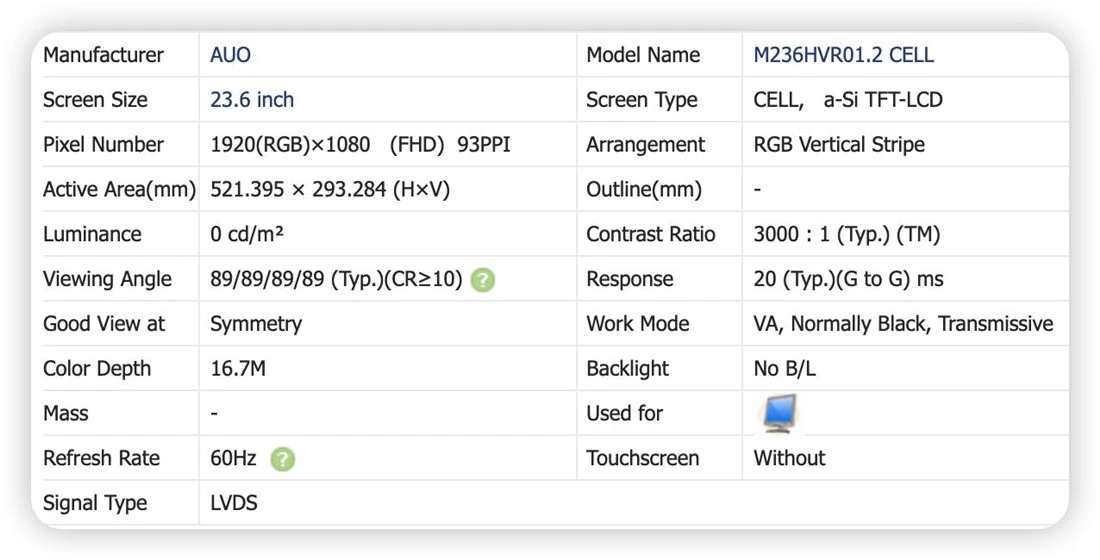

The M236HVR01.2 CELL is a 23.6 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), without backlight, without touch screen. It's general features are summarized by MagicSCM in the following: Curved Display, R1500, R Angle/ SNB. Based on its features, MagicSCM recommend that this model be applied to Desktop Monitor etc. and last shippment on Q2, 2021, Now this model is discontinued. There are 2 items stock and 1 suppliers of this model on MagicSCM. We inputted this model's specification on Apr 14 2020 for the first time, and the latest update on Aug 5 2021. If you want to embed M236HVR01.2 CELL CELL in your future product, MagicSCM strongly recommend that you should contact with AUO or it's agent to learn lateast production and specification detail. The M236HVR01.2 CELL production status marked on MagicSCM.com is for reference only and should not be used as the basis for the user's decision making. The above parameters are not from the datasheet, only as a reference, please use with caution!

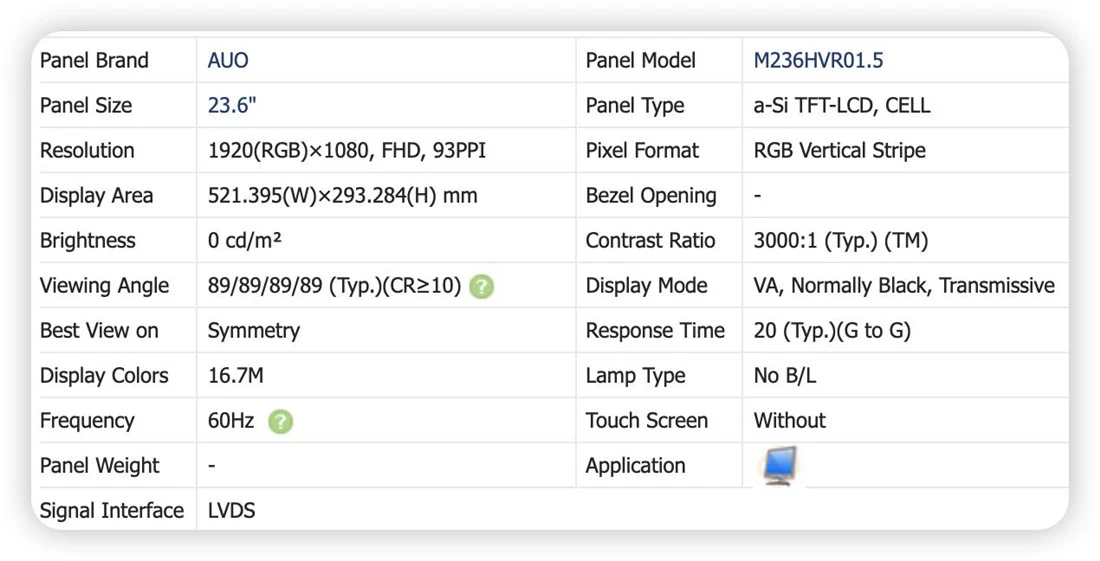

AU Optronics Corp. (hereafter called AUO) M236HVR01.5 is a 23.6 inch diagonal a-Si TFT-LCD display panel product, without backlight, without touch screen. It's general features are summarized by MagicSCM in the following: Curved Display, R1000. Based on its features, MagicSCM recommend that this model be applied to Desktop Monitor etc. Now this model is discontinued. There are 0 items stock and 0 suppliers of this model on MagicSCM. We inputted this model's specification on Apr 7 2021 for the first time, and the latest update on Aug 5 2021. If you want to embed M236HVR01.5 CELL in your future product, MagicSCM strongly recommend that you should contact with AUO or it's distributor to learn lateast production and specification detail. The M236HVR01.5 production status marked on MagicSCM.com is for reference only and should not be used as the basis for the user's decision making. The above parameters are not from the datasheet, only as a reference, please be caution of useing !
The website stock model update is not timely, if you do not find the panel model you need in the product list, or have any questions, please feel free to contact us.
